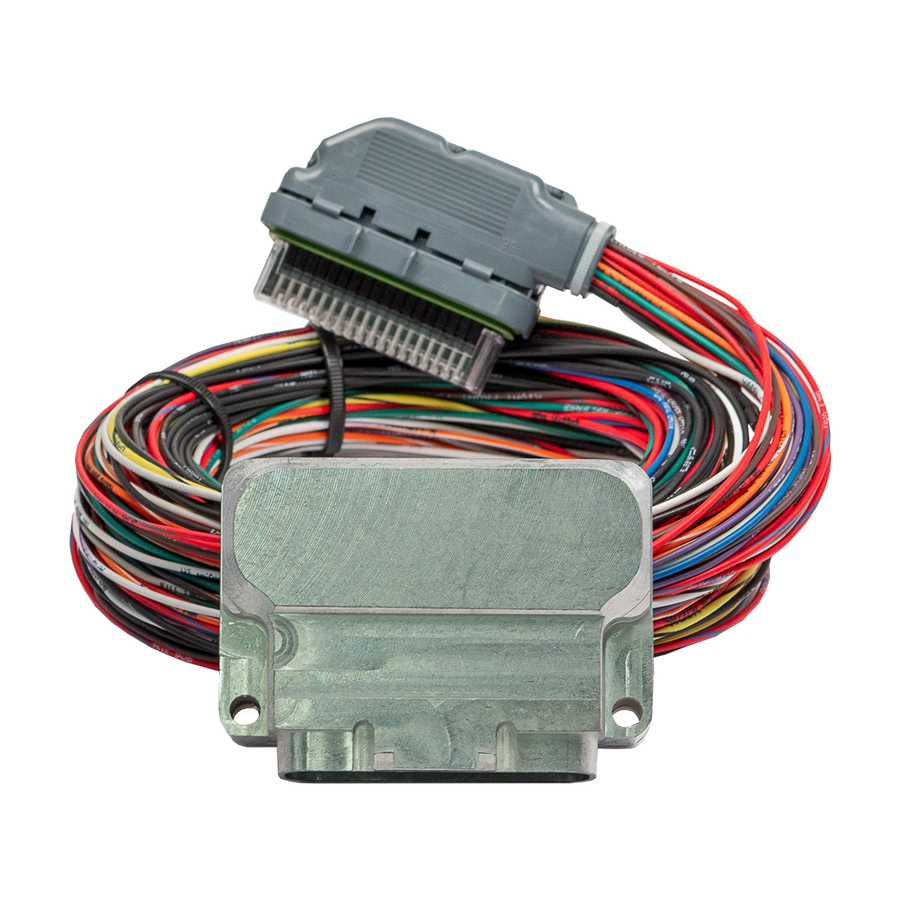

Micro Harness Controller Without Center Brake Light

Part Number EA4260

This streamlined wiring solution consolidates a motorcycle’s essential electrical system functions into one sleek module — designed specifically for builds without a dedicated center brake light. Crafted for choppers, bobbers, and custom bikes where minimalistic styling and clean wiring are key.

Key Features:

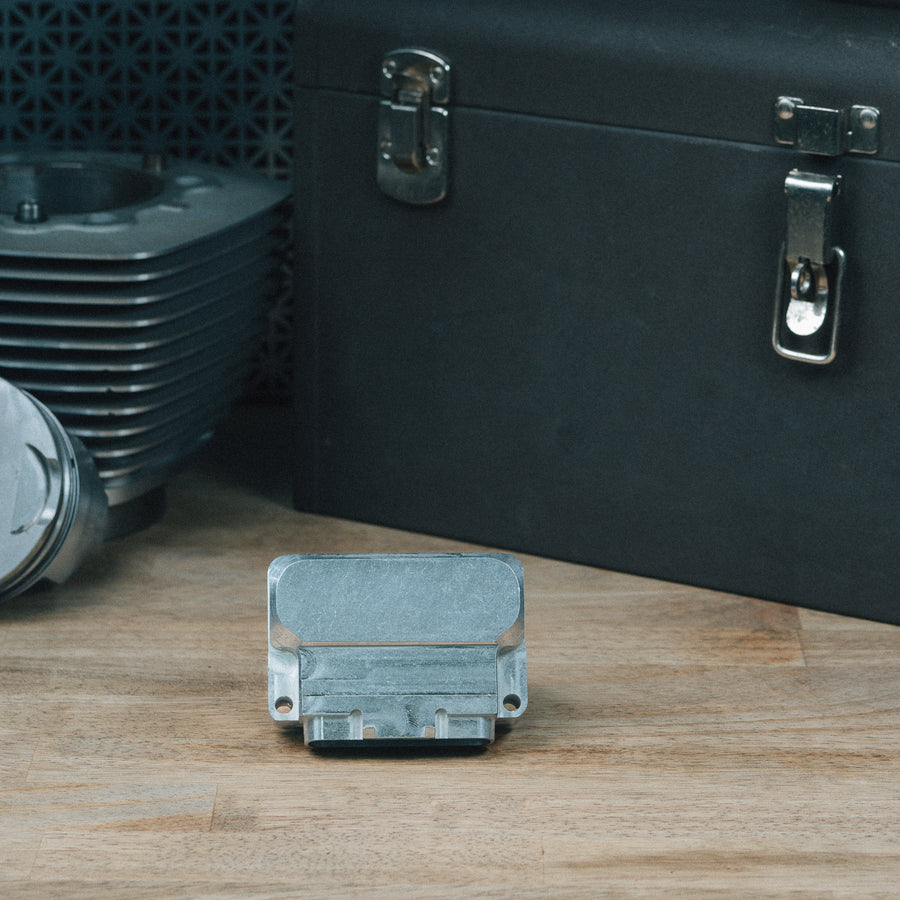

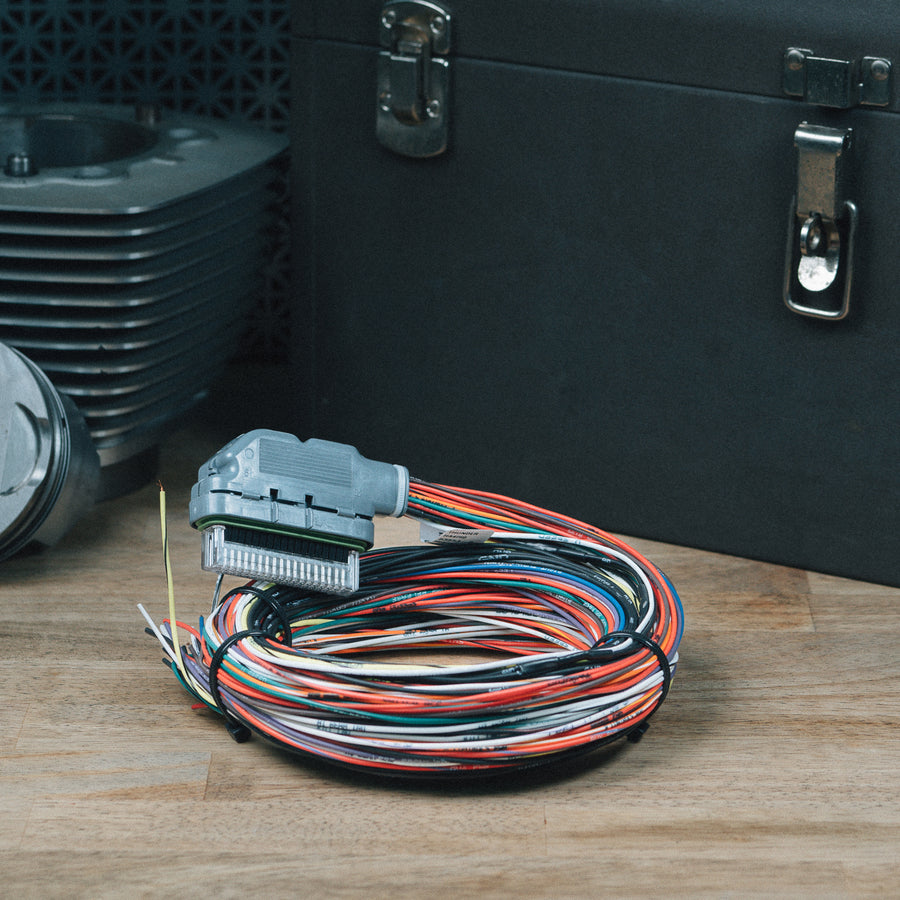

Billet aluminum housing (6061 T-6) with a low-profile, trim-to-fit wiring harness (7 ft) for hidden installation.

Integrates all fuse, relay and signal-cancelling functions into one unit — supports running lights, brake lights (via stock/dual-filament bulb), turn signals, hazard lights and tri-state indicators.

Weather-resistant connections and smart power distribution (relays instead of large wiring runs) for durability in custom builds.

Dedicated for bikes that do not use a separate center brake light — perfect for classic fender setups.

Compatibility & Install Notes:

Application: Best suited for custom motorcycle applications where a center brake light module is not being used and where the builder intends to use a combined tail/brake/turn signal bulb or separate side turn signals only.

Mount the controller in a protected area (avoid high-heat spots, tight crush/pinch zones), route the 7-ft harness through the frame or along custom wire-looms, and connect the supplied wires to your lighting/turn/brake circuits following the included wiring diagram.

Ensure the brake light function is wired correctly to the module’s input for combined tail/brake output; confirm the turn-signal / hazard switch is compatible with the module’s input.

Because this version omits a center brake light module, do not attempt to wire a center-mounted brake light unless using the companion kit (e.g., EA4360) designed for that configuration.
