Pushbutton Converter

Part Number EA4093

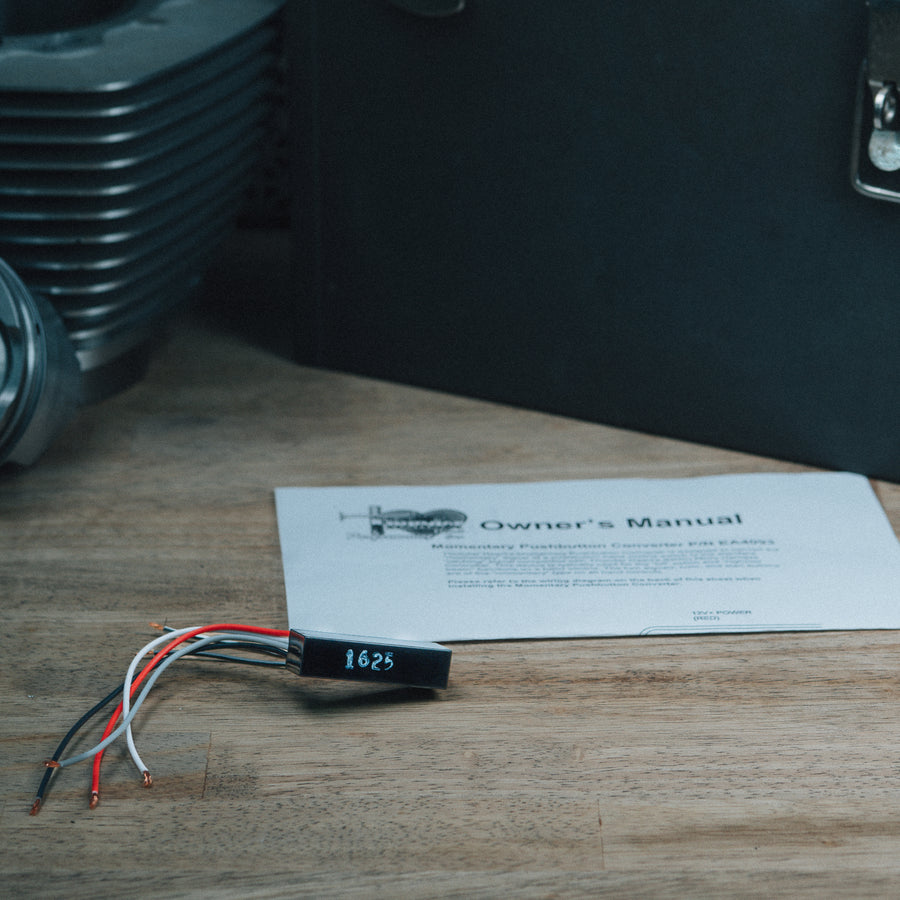

A compact and reliable interface module that lets you use momentary push-button hand controls (like kill switches or high/low beam switches) with systems that expect a latching (on/off) signal. Ideal for custom builds and integration with the Thunder Heart Micro Harness Controller.

Key Features:

Converts a momentary push-button signal into a standard “latching” output.

Fully circuit-protected design, no mechanical relays to wear out.

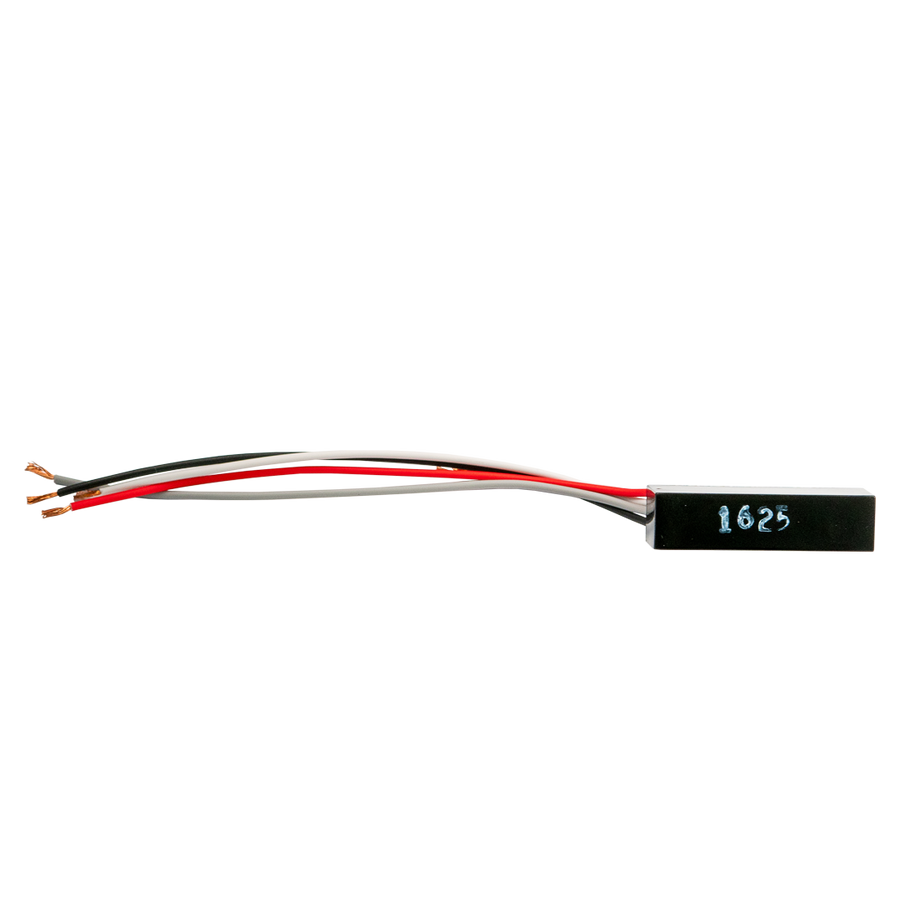

Ultra-compact: approximately 2″ x 0.6″ x 0.5″ — easy to tuck away in a custom frame.

Simple six-wire hookup; wiring diagram included.

Designed for use with 12 V systems (e.g., motorcycle electrical systems).

Compatibility & Install Notes:

Suitable for custom motorcycles where push-button hand controls are used in place of factory switches, especially in setups using the Thunder Heart Micro Harness Controller.

Installation steps: mount the module in a protected location, connect the six-wire harness per the wiring diagram, ensure correct signal inputs and outputs.

The converter handles up to 1 A load.

Not a general electrical switch substitute; meant specifically for signal control (kill switch, high/low beam or similar momentary functions) when integrated with compatible systems.
